CAS LS 1-300t pancake load cell
CAS load cell, CAS LS/LSU tank load cell, truck scale load cell, pan cake load cell models: LS-1, LS-2, LS-3, LS-5, LS-10, LS-20; LSU-50, LSU-100, LSU-200.
| Max. capacity | tf | 1,2,3,5,10,20, 50(LSU),100(LSU),200(LSU) | |
| Rated output Zero balance | mV/ V mV/ V | 2.0 ± 0.005 0 ± 0.02 | |
| Accuracy class | A | B | |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.02 0.01 0.03 0.03 0.03 | 0.05 0.02 0.03 0.03 0.03 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 350 ± 3.5 350 ± 3.5 ＞2,000 | |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -20 to +80 | |

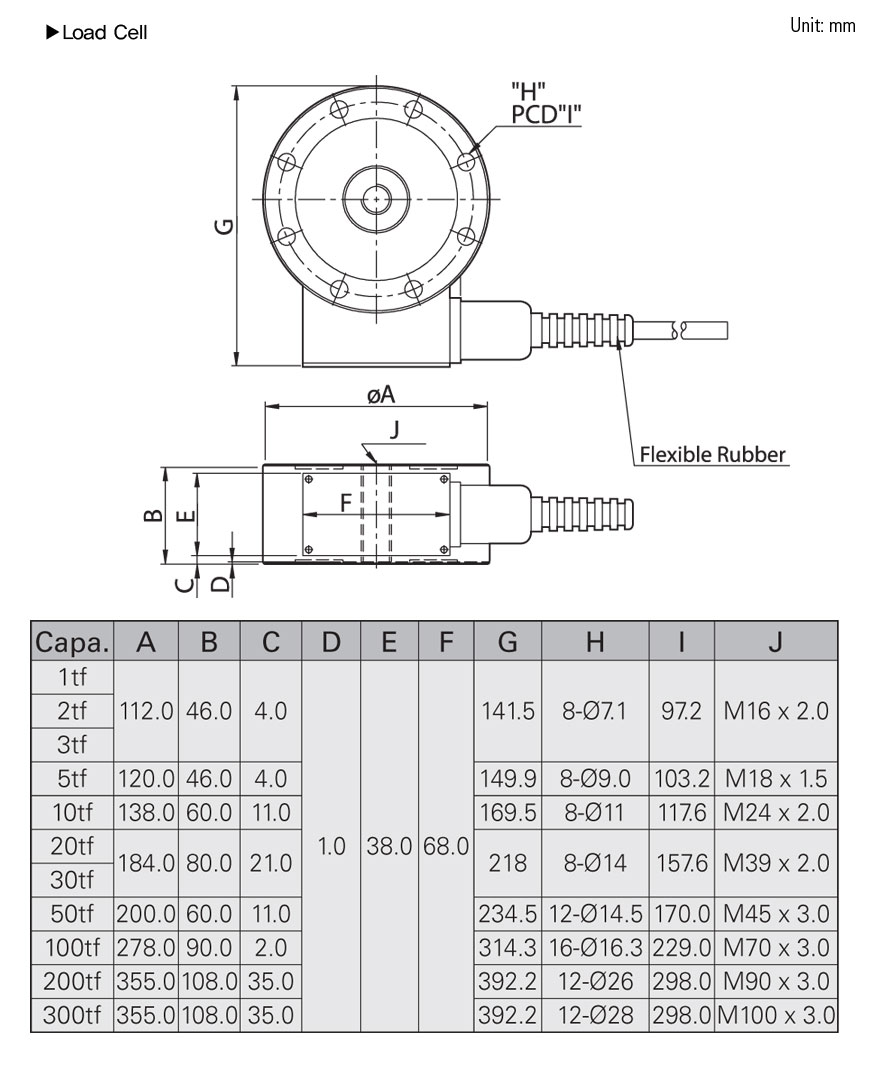

![LS[2].jpg](../upload/201704/1491808204616261.jpg "1491808204616261.jpg")
